Modelos KX

Estos modelos están certificados por NSF International y para su aprobación se han utilizado materiales de la más alta calidad, aproximadamente un 90% de estos equipos están fabricados en Acero Inoxidable (Tolva, Base Superior e Inferior, Sinfines, Flechas, Mallas, Perfiladores Chasis Horno, Enfriador, Tapas y Comales.)

These models are certified by NSF International and for approval have been used materials of the highest quality, approximately 90% of these equipment are made of Stainless Steel (Hopper, Upper and Lower Base, Augers, Axis, Meshes, Cutters, Chassis Oven, Cooler, Lids and Comales.)

Modelo 30KX

• Production capacity: 900 tortillas per hour (65 lbs. per hour. approx.)
• Measurements: 7.71 feet long, 2.95 feet wide, 5.74 feet tall.

Modelo 70KX

• Production capacity: 2,100 tortillas per hour (155 lbs. per hour. approx.)
• Gas consumption: 4.151 M3 per hour (Natural gas) 1 Inch Gas inlet.
• 146,603 BTU ́s per hour, 10 Oz. pressure.
• 2 Motors 2 HP. (Motor and electric parts are NOM, UL, CE.)
• Amperage: 220V-60Hz Biphasic (two phases.)
• Electricity consumption: 2 Kw. per hour, 9.5 Amperes.
• Measurements: 10 feet long, 3.77 feet wide.

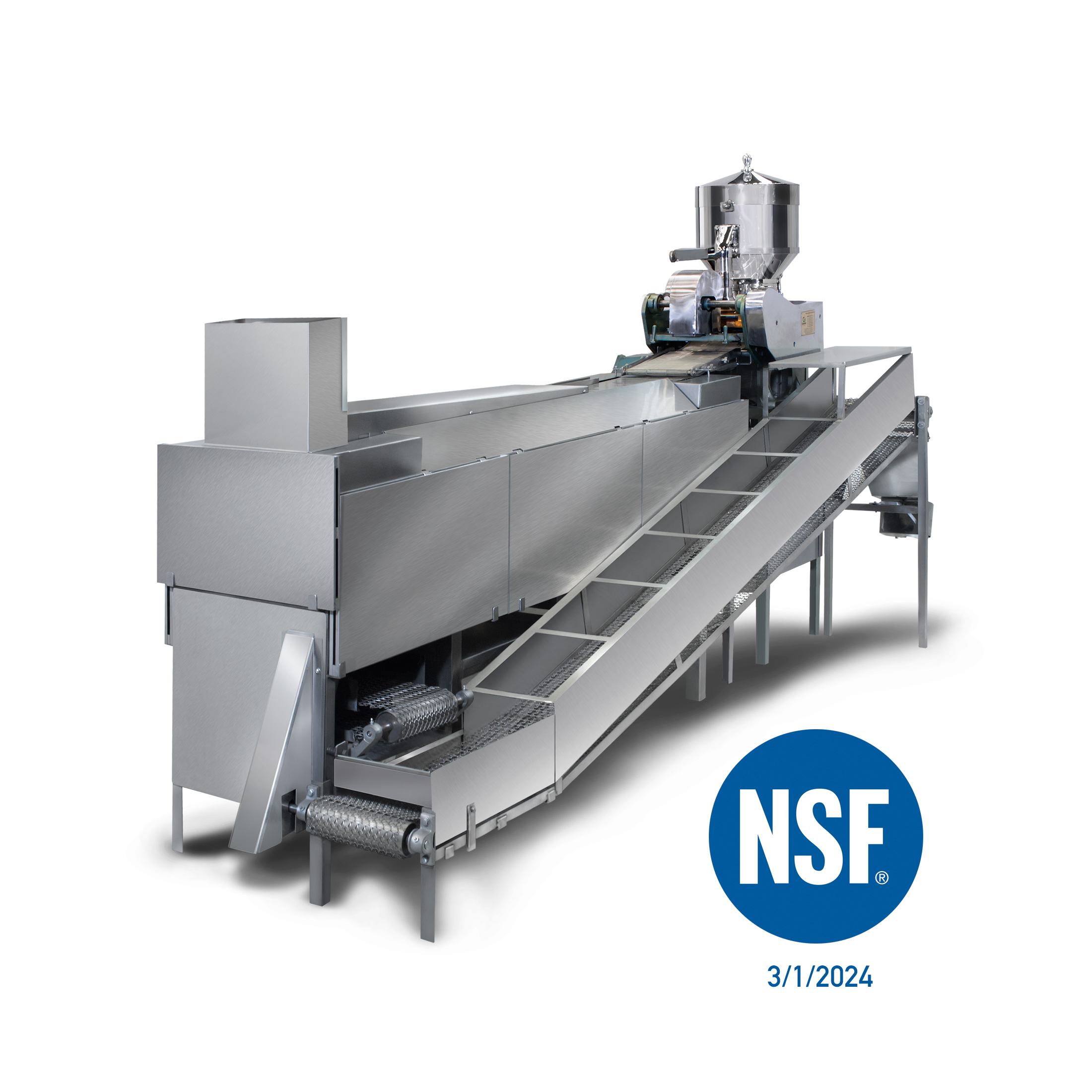

Modelo 100KX

• Production capacity: 3,000 tortillas per hour (220 lbs. per hour. approx.)
• Gas consumption: 5.240 M3 per hour (Natural gas) 1 Inch Gas inlet.
• 185,069 BTU ́s per hour, 10 Oz. pressure.
• 2 Motors 2 HP (Motors and electric parts are NOM, UL, CE.)
• Amperage: 220V-60Hz Biphasic (two phases.)
• Electricity consumption: 2 Kw. per hour, 9.5 Amperes per phase.
• Measurements: 13.51 feet long, 3.77 feet wide.

Modelo 200KX

• Production capacity: 6,000 tortillas per hour (440 lbs. per hour. approx.)
• Gas consumption: 8.008 M3 per hour (Natural gas) 1 Inch Gas inlet.
• 282,804 BTU ́s per hour, 10 Oz. pressure.
• 1 Motor 2 HP.& 1 Motor 3 HP. (Motors and electric parts are NOM, UL, CE.)
• Amperage: 220V-60Hz Biphasic (two phases.)
• Electricity consumption: 4.2 Kw. per hour, 12 Amperes per phase.
• Measurements: 13.61 feet long, 5.28 feet wide.

Nota:

Al menos tiene que dejar una yarda alrededor de la máquina para limpieza y mantenimiento.

At least you must leave one yard all around the machine for cleaning and maintenance.
